Super Heavy Duty Aluminum Rolling Ramp with Max. 300kg rated and 762mm wide – LY-30 C
Key Features and Benefits
✅ Made of lightweight and durable aluminum material
✅ Non-slip surface for user safety
✅ Available in different lengths and widths
✅ Can support weight upto 300 Kg
✅ Easily foldable and storable
✅ Easily carryable due to lightweight
✅ Equipped with safety railing on both sides (Optional)
✅ Easy to set up
د.إ960.00 – د.إ1,920.00Price range: د.إ960.00 through د.إ1,920.00 excl. VAT

Fast Delivery

Secured Payment

Warranty

After Sales Support
Fast Delivery
Secured Payment
Warranty
After Sales Support
Description

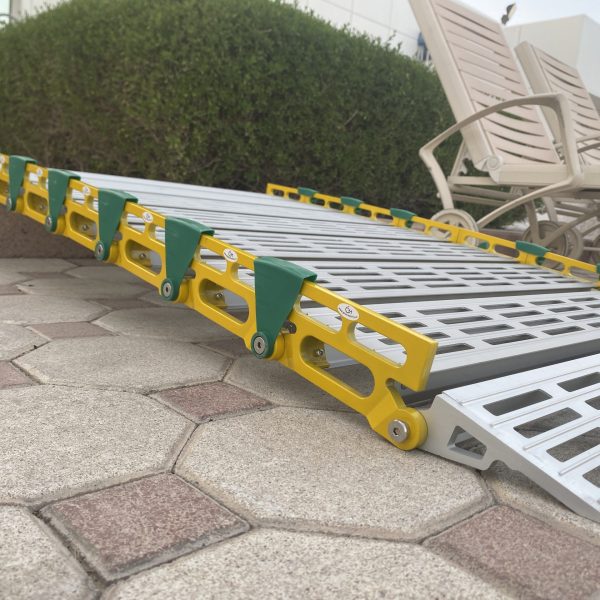

LY-30 C Series Aluminum Rolling Ramp

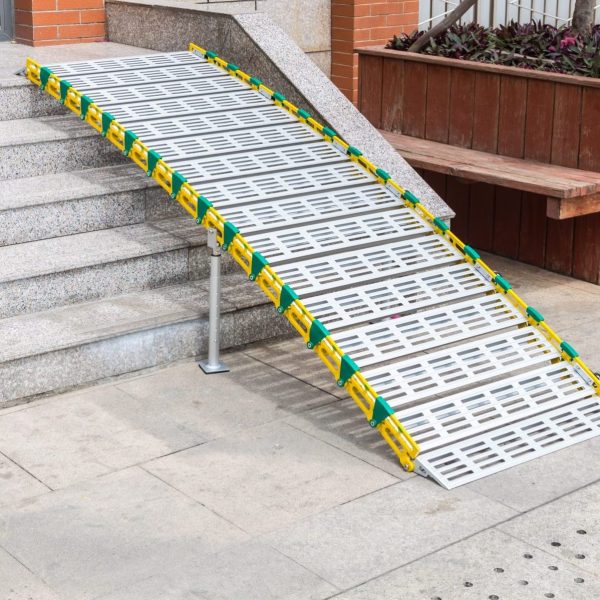

Modular rolling ramps are revolutionary and versatile as they can be simply folded and easily mobile. Allowing easy access to wheelchairs, scooters, walkers, or other wheeled products.
Gilani Mobility is introducing Modular rolling ramps LY-30 C Series to the Middle East, Modular rolling ramps are unique in their features and quality.

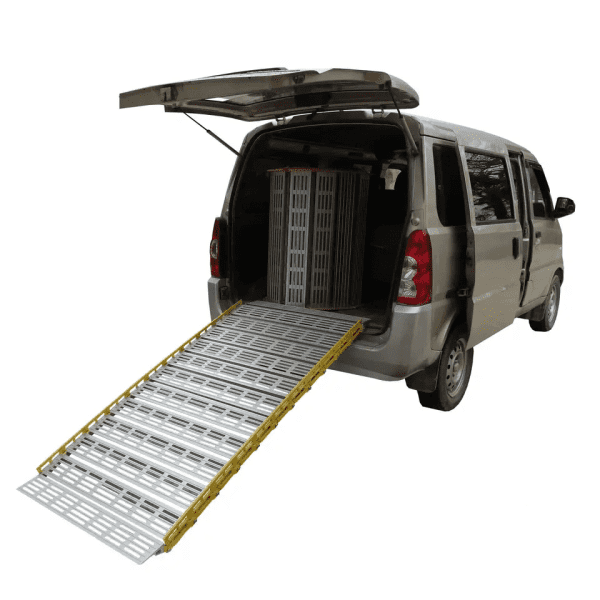

Modular rolling ramps LY-30 C are foldable and easily transportable because their frame is made of aluminum. Aluminum is a material that is sturdy and lightweight simultaneously. It can bear 300 Kg (1102 lbs) weight, and it’s high load-bearing quality makes it ideal for industrial and non-industrial areas.
Further, you can use these ramps according to your needs thus they can be used as a temporary, permanent, or semi-permanent source at any place. It is available in different lengths and widths to accommodate your needs and requirements. It’s non-slip material guarantees the safety and security of the users. A strap is built on both sides to ensure it safely remains closed during use. It is also equipped with a safety lock to avoid accidental opening.
Overall, the Modular rolling ramps LY-30 C is a versatile, durable, and lightweight option for anyone needing a portable ramp solution. It’s designed for safety and convenience and is suitable for many uses.
Features
Some key features of LY-30 C Series Aluminum Rolling Ramps are;
- Made of lightweight and durable aluminum material
- Non-slip surface for user safety
- Available in different lengths and widths
- Can support weight upto 300 Kg
- Easily foldable and storable
- Easily carryable due to lightweight
- Equipped with safety railing on both sides ( Optional )
- Easy to set up (as a temporary or permanent source)
Benefits
You can expect the following benefits from using LY-30 ramps;
- LY-30 is long-lasting and durable due to the aluminum material frame
- Non-slip surfaces ensure user safety
- Can accommodate the required length for different heights

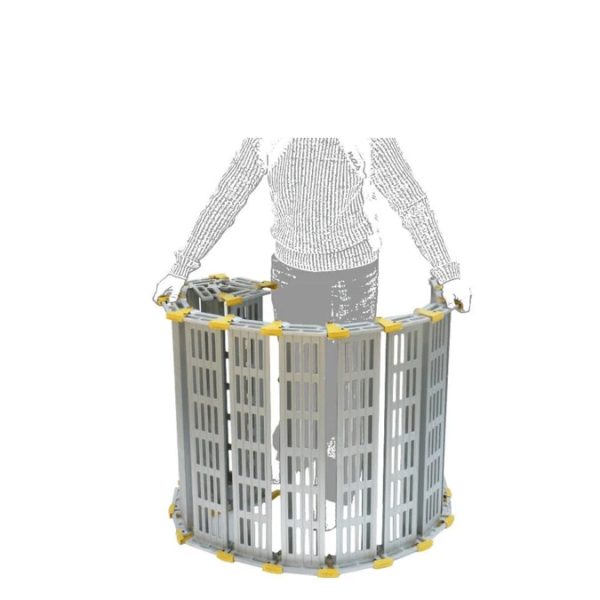

- It can easily fold into a compact shape which makes it easy to store and transport
- 300 Kg weight-bearing feature makes it useable at various sites such as homes, offices, markets, and even industrial areas.
- Super easy to set up as a permanent, semi-permanent, and temporary source
LY-30-3FT Parameters
| Specification | Details |
|---|---|
| Open Size | 1050*762 m |
| N.W | 9 kg |
| Roll Size | Ø370*785 mm |
| Material | Aluminum alloy |
| CTN Size | 830*500*500 mm |
| Max Load | 500kg |
| Part No | LY30 | LY30-1 |
|---|---|---|
| Qty(pieces) | 5 | 2 |
| Part No | Cover | Screw |
| Qty(pieces) | 8 | 12 |
LY-30-4FT Parameters
| Specifications | Details |
|---|---|
| Open Size | 1350*762 m |
| N.W | 12 kg |
| Roll Size | Ø435*785 mm |
| Material | Aluminum alloy |
| CTN Size | 830*520*520 m |
| Max Load | 500kg |
| Part No | LY30 | LY30-1 |
|---|---|---|
| Qty(pieces) | 7 | 2 |
| Part No | Cover | Screw |
| Qty(pieces) | 12 | 16 |
LY-30-5FT Parameters
| Open Size | 1650*762 mm |
|---|---|
| N.W | 15 kg |
| Roll Size | Ø460*785 mm |
| Material | Aluminum alloy |
| CTN Size | 830*520*520 m |
| Max Load | 500kg |
| Part No | LY30 | LY30-1 |
|---|---|---|
| Qty(pieces) | 9 | 2 |
| Part No | Cover | Screw |
| Qty(pieces) | 16 | 20 |
LY-30-6FT Parameters
| Specification | Details |
|---|---|
| Open Size | 1950*762 mm |
| N.W | 18 kg |
| Roll Size | Ø535*762 mm |
| Material | Aluminum alloy |
| CTN Size | 830*600*600 m |
| Max Load | 500kg |
| Part No | LY30 | LY30-1 |
|---|---|---|
| Qty(pieces) | 11 | 2 |
| Part No | Cover | Screw |
| Qty(pieces) | 20 | 24 |
Frequently Asked Questions
Can I buy rolling ramps in Dubai, UAE?
Yes, you can buy rolling ramps in Dubai at Gilani Mobility. We provide aluminum-made ramps that are sturdy and durable.
How much weight can the LY-30 C Series Aluminum Rolling Ramp support?
The ramp can support weights up to 300 Kg.
Is the ramp surface slip-resistant?
The ramp features a non-slip surface to provide added safety and security.
Can the ramp be used in outdoor conditions?
Yes, the ramp is designed to be weather-resistant, making it suitable for use in a variety of outdoor conditions.
How long does it take to set up the ramp?
The ramp is easy to set up and can be used in minutes.
Can the ramp be used with a variety of wheelchairs and scooters?
Yes, the ramp is suitable for use with most wheelchairs and scooters.
Is the ramp easy to transport and store?
The ramp features a foldable design and built-in handles for easy carrying and storage. It can be folded in half and has built-in handles for easy carrying.
Is the ramp easy to use?
Yes, the ramp is designed to be easy and set up. It is a great solution for individuals needing a portable and easy-to-use ramp.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| LENGTH | 3 FT (914.4mm), 4 FT (1219.2mm), 5 FT (1524.0mm), 6 FT (1828.8mm) |
