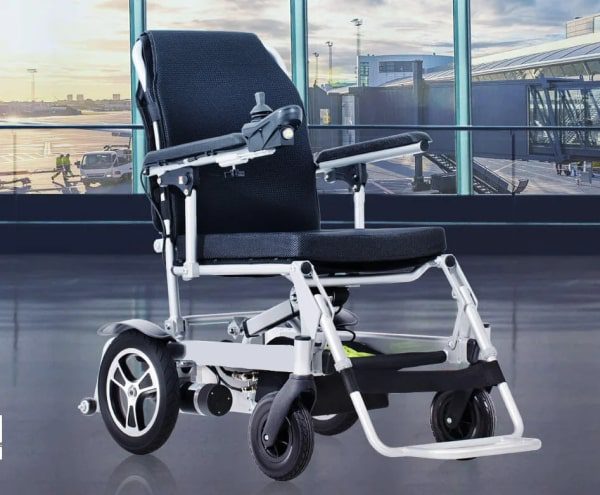

Electric Wheelchair With Auto Folding Options and a Remote Control – Air Wheel

Description

The electric robot H3PS Air wheel Electric Wheelchair is a professional piece of smart travel equipment integrating the latest development, scientific, technical, and refined design of the previous H3PS model.

This product has been well acclaimed by its fans and today we proudly introduce the latest design of the H3PS smart wheelchair.

Don’t let limited mobility stop you from exploring the world!!

For people who need to travel in a wheelchair, it is not easy as they often face challenges one after another due to the steering situation, like slopes and cobbled roads for example. In order to better help with these challenges, we have launched the smart wheelchair H3PS.

The list of outstanding features of the H3PS Robot Smart Air wheel Electric Wheelchair:

1-Green Power Drive

The robot H3PS motorized Air wheel electric wheelchair adopts its double motor design, giving its 12.5-inch rear wheels enough power, with a climbing angle up to 8°and a standing angle of 8°. Combined with the flexible front wheels, the GEH3PS electric automatic folding wheelchair is able to cope with all kinds of road conditions,  helping people to save effort and see more scenery.

2-Easy operation

Its lever is equipped with an easy-to-learn intelligent control handle and all functions can be controlled with one button. In addition, the smart handle also supports left and right interchange to make everyone’s ride comfortable and smooth. The left and right armrests are also designed to be releasable and retractable, making it easy for the user to dine or get on and off the wheelchair easily.

3-Increase your independency

This Robot H3PS power Air wheel electric wheelchair is also equipped with a Bluetooth remote control, which can be used to control the wheelchair to move forward and backward, to turn left and right, to fold and unfold, and to turn on and off the headlights quickly. The barrier-free remote control distance is up to 8 meters, and the wheelchair can be controlled to be close to, parked and folded by the Bluetooth remote control during daily use.

4-Improved joystick operation

The smart controller on the armrest can display various function buttons at a glance. Independent buttons are used for acceleration, deceleration, lighting, horn, etc.; the 360°smart joystick makes the hand feel extremely comfortable. Also, the Airwheel Robot controller is detachable and can be installed on the other armrest.

5-Super traffic ability

The rear wheels of the Robot power Air wheel electric wheelchair use a 10-inch pneumatic tire with a double-layer structure of the inner tube and outer tire, with excellent shock absorption. When riding on grass and gravel roads, there are not too many bumps. For slope roads, due to the use of two sets of drive motors and one pushrod motor, there is no pressure when climbing.

6- Safety

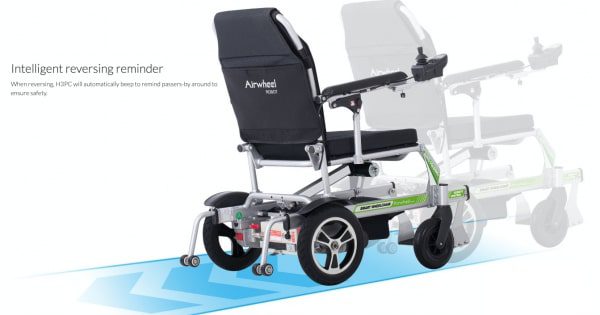

This improved robot mobility Air Wheel Electric Wheelchair adopts EABS battery brakes, and it can be parked well on slopes without slipping back. The rear wheel is designed with multifunctional anti-roll wheels, which can effectively prevent the body from tipping when going up and down or reversing. Of course, it can also be used as a support angle when folded. When reversing, H3PS will automatically release an alarm, which can warn people around them and avoid unnecessary collisions. The front part of the smart controller is also equipped with head LED lights for lighting.

7- Fold-ability

The mainframe of Airwheel GEH3PS adopts an electric folding mobility wheelchair design, so the folding/unfolding operation only needs a press of a button. The folding/unfolding process takes about 20 seconds. Please note that when folding, you must first press the switch on the smart controller. After seeing the indicator light is off, press and hold the “Decelerate/Fold” button, and the wheelchair will start to fold. It is the same as Bluetooth remote control and app control.
>8- Moving around with ease

One of the primary benefits of owning a GEH3SP is that it typically offers a tighter turning radius and is geared toward people that have limited mobility in their hands. Weighing in at about 19.5kg, the Airwheel GEH3PS is one of the lightest folding electric wheelchairs on the market This is a unit that folds into one piece that measures only  950x605x340mm, which is quite compact compared to others. It’s perfect for people who are always on the go. Auto Folding can be done in a matter of seconds. Considering how petite it is when folded, it can be easily stored in the boot of your car or in other tight places.

9- Impressive capacity

GEH3PS mobility Air wheel Electric wheelchair is rated up to 120kg and speed of 6 km/h.

10- Bluetooth pairing with mobile phones using the Airwheel app.

Airwheel app can be downloaded in Androids or Apples using the QR scan code available in the wheelchair. The Bluetooth verification password to connect the wheelchair with your phone is 11111111. After the phone gets paired, all the functions on the joystick of the wheelchair can be done with the Airwheel app on the phone.

Specifications of the Air Wheel Electric Wheelchair:

• Product Size: 955mm*605mm*855mm
• Folding size: 950mm*605mm*340mm
• Net weight: 19.5kg (without battery)
• Frame: Aluminium Alloy grade 6061
• Front-wheel: 7 inch
• Rear-wheel: 10-inch Pneumatic tires
• Clutch lever: changing the mode between electric and manual
• Obstacle: <25mm
• Battery: 524 W/h, 20Ah, Lithium small battery
• Battery weight: 1.5kg
• Charging time: 2-3h
• Turning radius: 100 Cm
• Speed: 6km/h
• Load capacity: 100kg
• Climbing ability: ≥6°
• On-hill performance: 9°
• Folding: auto and manual-folding
• Braking distance: ≤1.5m
• Motor: brushless
• Voltage: 25.2V
• Motor power: 200W*2 Pcs
• Airplane certification

Frequently asked questions:

1- How long does an electric wheelchair battery last?

A fully charged electric wheelchair battery lasts usually lasts about 20km before dying out and requiring charging. Our Air Hawk electric wheelchairs and Falcon Electric wheelchair batteries go further than the average electric wheelchair and have a mileage of approximately 25km! Our electric wheelchairs such as the Air Hawk or Falcon have two 6AH lithium-ion batteries which are the highest quality and longest lasting batteries for electric wheelchairs. The Air wheel Electric Wheelchair only takes 2-3 hours to fully charge and is one of the only auto folding with remote control.

2- How to convert a manual wheelchair to an electric wheelchair?

You can convert a manual wheelchair to an electric wheelchair in a number of different ways depending on what you would like to achieve.

If you want a manual foldable wheelchair that is lightweight but does not regularly travel outdoors and would like a power wheelchair to assist you on occasion, the power assist is an excellent mobility solution. The power assists easily clips onto the back of your manual wheelchair to transform it into an electric wheelchair and detaches whenever you would like to turn it back to a lightweight manual wheelchair.

If you are after a manual foldable wheelchair but would like a power wheelchair that you can steer more like a mobility scooter, then the hand cycle may be a more suitable mobility solution for you! The hand cycle is a clever piece of technology that attaches to the front of your manual wheelchair and has handlebars for steering you in the direction you want to go. The hand cycle converts your humble manual wheelchair to a powerful electric wheelchair or mobility scooter.

If you are the type of person to equally use the manual features and electric wheelchair features and want the power to swap between electric or manual with little fuss, then a hybrid manual/ electric Self-propelled wheelchair is suitable for you. With a hybrid electric wheelchair, you can press a button and turn the wheelchair into an electric wheelchair and swap back if you wish! These self-propelled wheelchairs are the lightest electric wheelchairs available on the market and weigh about 19kg. They are also foldable, easy to use, and store so you are not missing out on the manual wheelchair functions.

The Falcon/ Air Hawk / Air wheel electric wheelchair is a type of electric wheelchair suitable for you if you would like to primarily use the electric wheelchair functions but want to have the peace of mind in case your battery dies that you can use it manually. With a flick of a switch on these wheelchairs, you can turn them into manual wheelchairs so you do not need to worry if you are in public and your electric wheelchair battery dies.

3- How to use an electric wheelchair?

The Air wheel electric wheelchair is simple and easy to use. Our electric wheelchairs are joystick controlled, meaning that all the functions can be controlled by using the joystick. You can increase the speed by clicking the plus button on our joystick or you can decrease the speed by clicking the minus button on your joystick. To move around, just point the joystick to the direction you would like to go as it can go in any 360 direction! When you are off the lightweight folding wheelchair, it can be controlled with the remote and can also be automatically folded by the remote making it one of the easiest wheelchairs to use on the market!

Considerations: Load Capacity for Wheelchair?

The load capacity of a wheelchair/scooter may change according to the type of ground the wheelchair/scooter is used on.

The supplier’s stated load capacity may have been given for a product that has been tested on flat ground.

However, the load capacity, performance, and stability may change when the product is used on an incline.

These factors, including the maximum gradient on which a wheelchair/scooter should be safely used, must be discussed with the supplier.
