HDN Hidden In The Floor Lift Platform by Liftup

Description

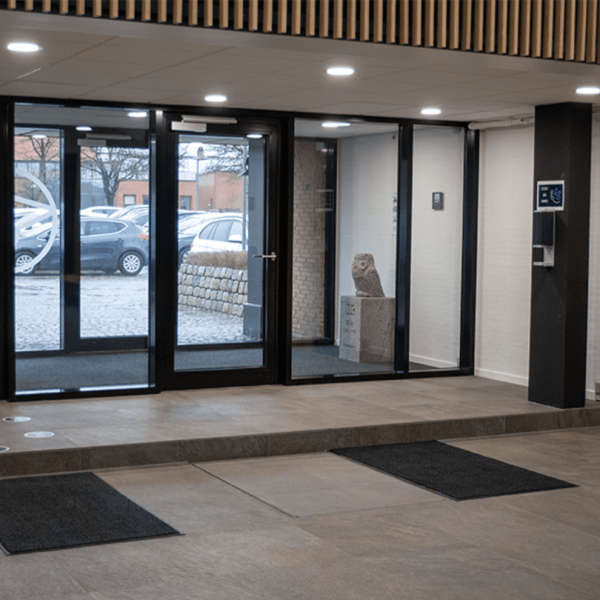

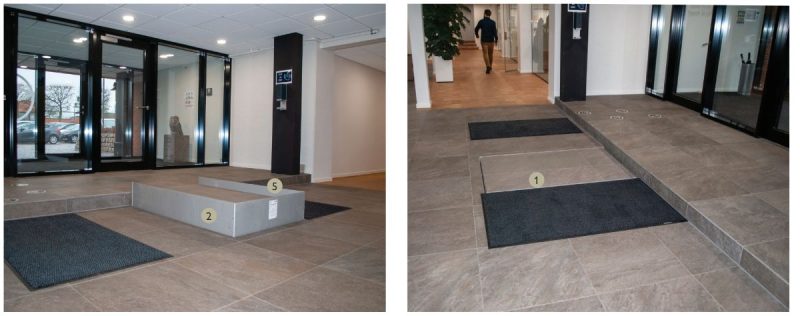

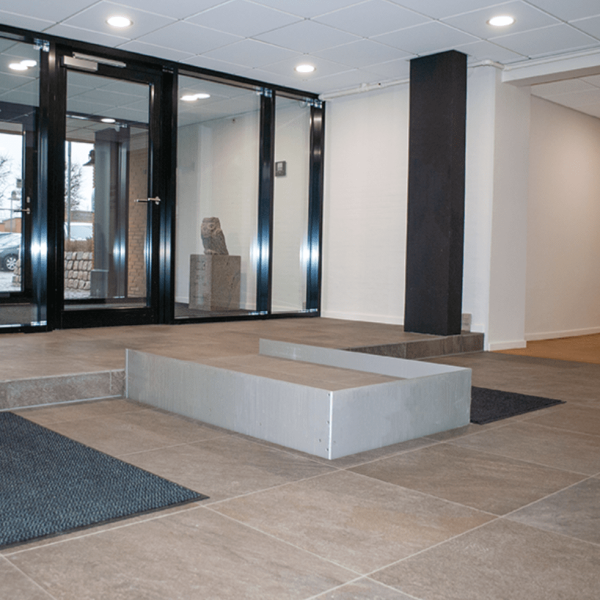

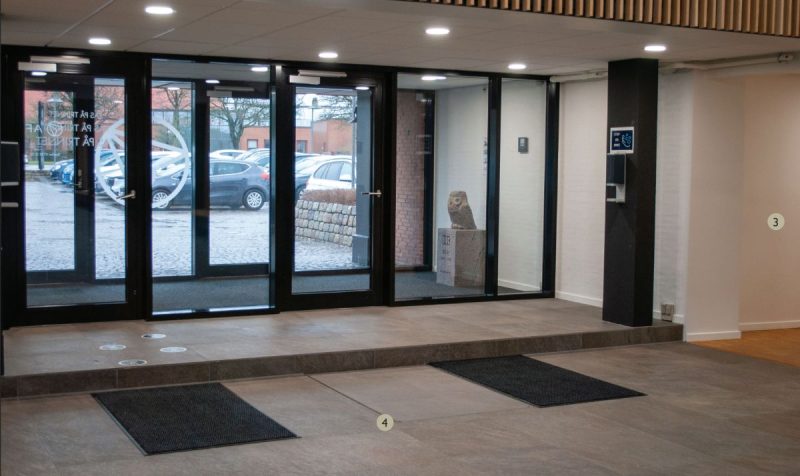

Introducing the HDN, a modern lift by Liftup designed for wheelchair users. This lift is stylish and strong, easily fitting into any space. When not in use, the HDN lift hides in the floor, matching the area around it and keeping the space neat.

The HDN lift is known for its modern look and smart design. It works well in places with 1 or 2 steps, like shops and offices.

The HDN makes it easy for wheelchair users to move around without changing the space’s layout or style, even in small areas. There’s no need for big changes to install the lift, as it fits right into the existing design. The HDN blends in well with its surroundings, making it a subtle addition to any area.

Explore Other Available Wheelchair Platform Lift

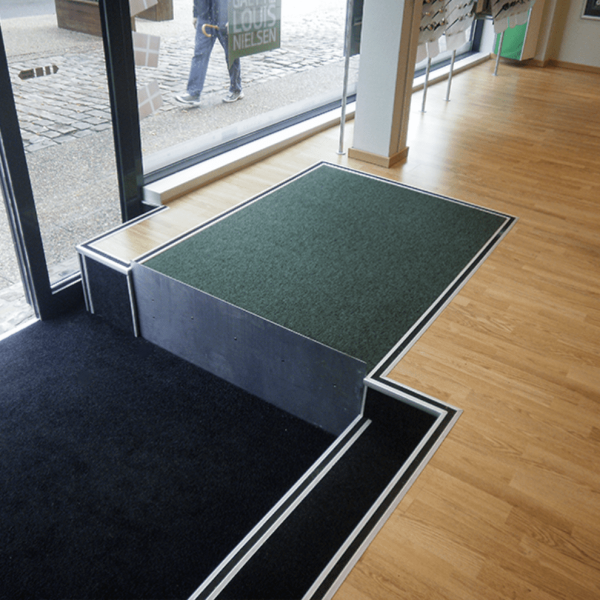

The HDN is seamlessly integrated into the floor, meaning only the surface of the lifting platform needs to be adjusted to match its surroundings. This surface can be customized with a variety of materials like wood, marble, granite, paving stones, cobblestone, carpet, vinyl, mats, and tiles.

Although the HDN appears simple from the outside, inside it features a reliable and robust mechanism that ensures a smooth and safe lifting operation with a strong capacity.

Top Safety Features

The HDN lift from Liftup is designed with top safety features to ensure secure operation.

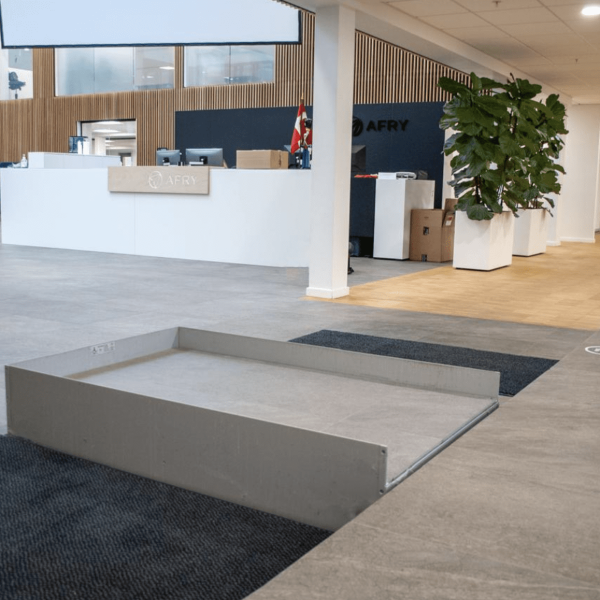

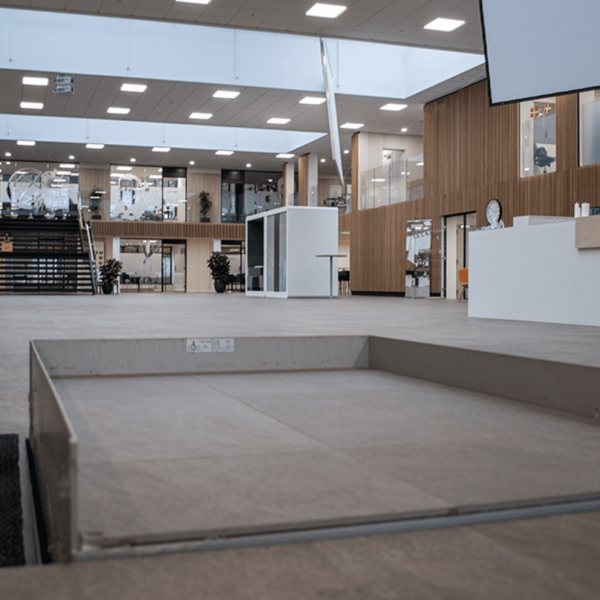

• Safety Guards: The lift has 10 cm high safety guards on its three open sides to prevent wheelchairs from rolling off while it’s in use.
• Automatic Overload Protection: If the lift is overloaded or if the load is unevenly distributed, the platform will automatically stop to prevent any accidents.
• Enclosed System: The lift operates within a closed system, which reduces the risk of anyone coming into contact with moving parts, making it safer to use.
• Emergency Stop: In case of unexpected movement, the emergency stop feature can be activated to immediately halt the platform, ensuring additional safety.

Nordic Design

The Nordic design, inspired by the aesthetic traditions of Denmark, Finland, Iceland, Norway, and Sweden, focuses on minimalism, functionality, and simplicity. It often uses natural or muted colors and materials like wood, glass, and metal, incorporating natural elements to achieve a clean, modern, and visually appealing look. This design philosophy is often linked with “hygge,” which embodies a sense of coziness and comfort.

The HDN is carefully crafted using durable and stable materials to ensure longevity and reliability. Its versatile design options allow for personalized adaptation to surroundings, creating an exclusive yet approachable style that fits seamlessly into various indoor and outdoor settings. With the HDN, you can enhance your space with a touch of sophistication, making it a perfect choice for most buildings and environments.

HDN 900 SPECIFICATIONS

900 x 1400 mm platform

The HDN 900, with its compact 900 x 1400 mm platform, is the smallest of three sizes, ideal for tight spaces where the wheelchair remains facing forward. It features 100 mm safety panels that rise before the platform, ensuring a smooth and safe ascent. These panels are integral to the lift’s design and the selection of model and pit drawing.

Specification	Value
Pit short side	935 mm
Lifting capacity	400 kg / 2 pers.
Lifting speed	20 mm / s
Weight	110 kg
Noise	< 70 dB
Lifting height	0-500 mm
Pit depth	350 mm
Pit long side	1430 mm
Duty cycle	2 min. / 18 min.



HDN 1000 SPECIFICATIONS

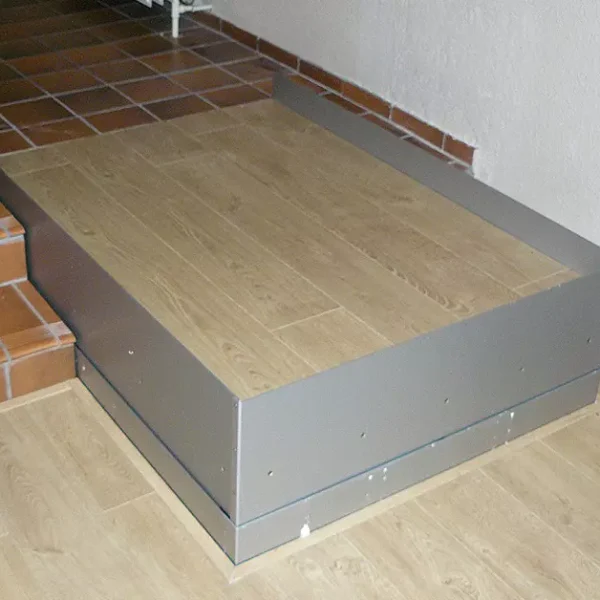

1000 x 1400 mm platform

The HDN 900 offers a compact platform measuring 900 x 1400 mm, making it suitable for confined areas where no wheelchair turning is needed on the platform. Safety is prioritized with 100 mm panels that elevate before the platform itself, facilitating a smooth and secure lift. These panels play a crucial role in the overall design and choice of model and pit drawing. The following are the specifications for HDN 1000:

Specification	Value
Pit short side	1035 mm
Lifting capacity	400 kg / 2 pers.
Lifting speed	20 mm / s
Weight	110 kg
Noise	< 70 dB
Lifting height	0-500 mm
Pit depth	350 mm
Pit long side	1430 mm
Duty cycle	2 min. / 18 min.



HDN 1100 SPECIFICATIONS

1100 x 1400 mm platform
This is the widest of the three HDN models, providing ample space for a large wheelchair to turn around easily. When the platform is covered with the same flooring as the surrounding area, the HDN is virtually invisible when not in use. In public spaces, a specially designed carpet with a wheelchair symbol is available to highlight the lift’s location. The following are the specifications for HDN 1100:

Specification	Value
Pit short side	1135 mm
Lifting capacity	400 kg / 2 pers.
Lifting speed	20 mm / s
Weight	110 kg
Noise	< 70 dB
Lifting height	0-500 mm
Pit depth	350 mm
Pit long side	1430 mm
Duty cycle	2 min. / 18 min.
