Description

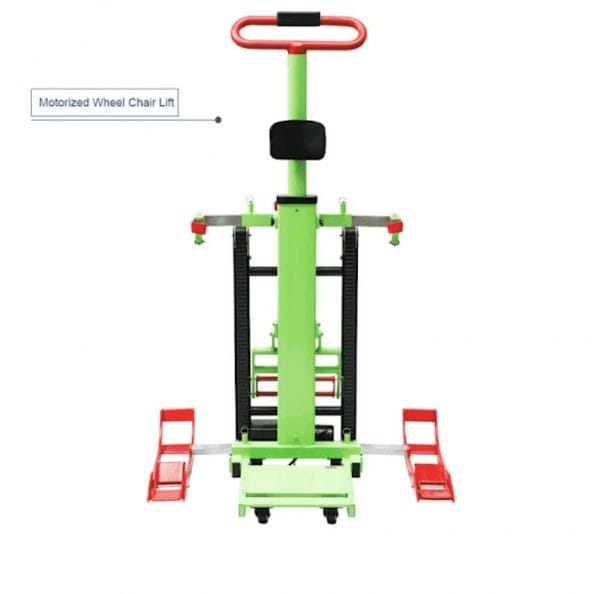

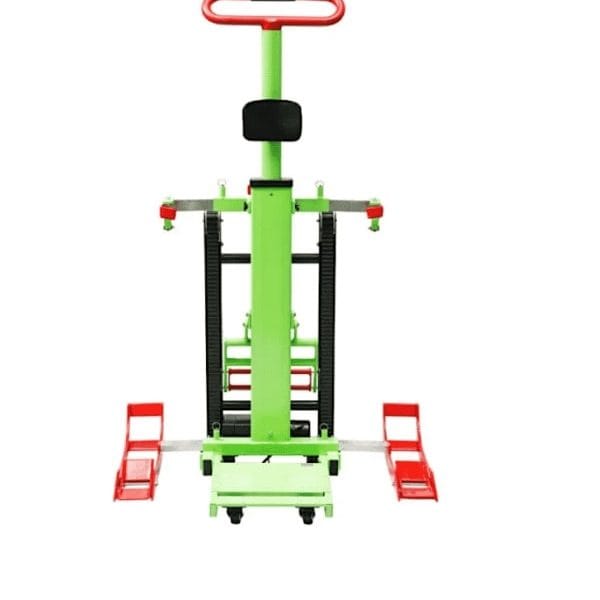

Motorised automatic stair climber wheelchair lift

A stair climber is a wheelchair lift that can easily transport a wheelchair and user up or down the stairs without too much hassle. This motorised stair climber wheelchair lift helps transfer the wheelchair user up and down the stairs without hassle. You can use a wheelchair lift anywhere where there is a staircase. This can be at your house, at the hospital, in high-rise buildings, nursing homes, aged care, and many more.

Features of this Automatic Stair Climber:

• Can be used for hospitals, care homes, emergency centers (fire, ambulance) and in your own home.
• The stair climber can be used for high-rise buildings to transfer patients up and down the stairs.
• Extra wide sliding system for safer and easier transfer.
• High-quality aluminium alloy
• The sliding system is adjustable and the user can adjust the tightness

Specifications of this Automatic Stair Climber:

Specifications	Details
Material	Aluminum Alloy
Extra Accessories	Optional
Unfolded Dimensions	63 x 56 x (112-171) cm
Folded Dimension	112 x 46 x 30 cm
Net Weight	33 kg
Gross Weight	49 kg
Loading Capacity	200 kg (please ensure the operator can handle the weight capacity)
Overall Depth	111 cm
Overall Width	50 cm
Motor Output Power	120W
Motor Output Voltage	20-29.5 V
Motor Adaptable Voltage	110-240 V
Motor Current	13.9 A
Battery Voltage	24 V
Battery	Lithium Battery x 1 PCS
Battery Lifetime	1000+ electric cycles (input and output)
Service Life	3-5 years
Max Speed	6 km/hr (3.7 mph)
Front Tires	6″ PU solid tires
Rear Tires	8.5″ solid tires
Climbing Slope	30–60°
Charging Time	5 hrs
Width of Armrests	50 cm
Drive Mode	Rear drive
Braking System	Directional wheel

What makes this stair climber so special?

1. Has a control panel with smart touch.
2. Upper control Handle that is ergonomically positioned for optimal operator control.
3. Motorised Stair-Tread System which easily transports the patient up and down stairs.
4. Strong wheel locks for a stable patient transfer.
5. 8.5-inch wheels which help to roll with less force.
6. The loading pallet bears the weight of the wheelchair.

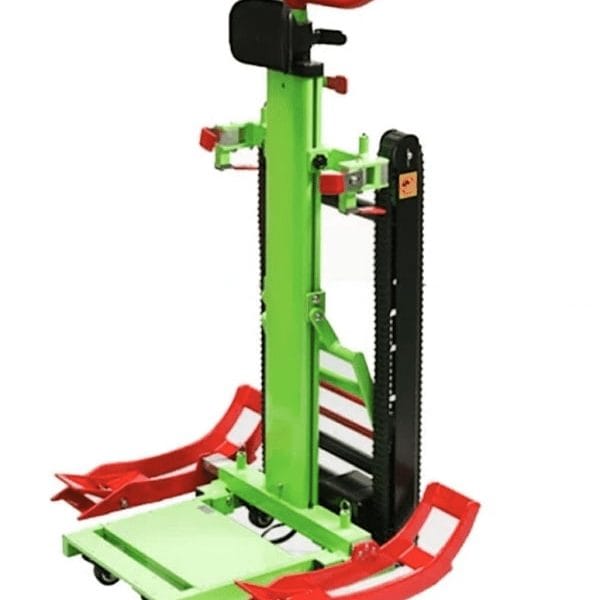

7. 40-60 mm adjustable wheel loading parts so a wheelchair users can easily drive into the loading part without additional transfer.

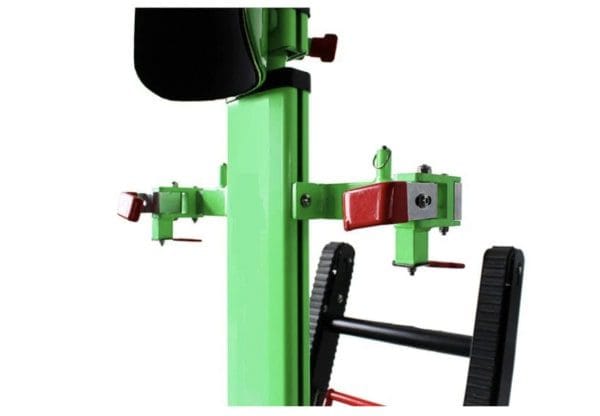

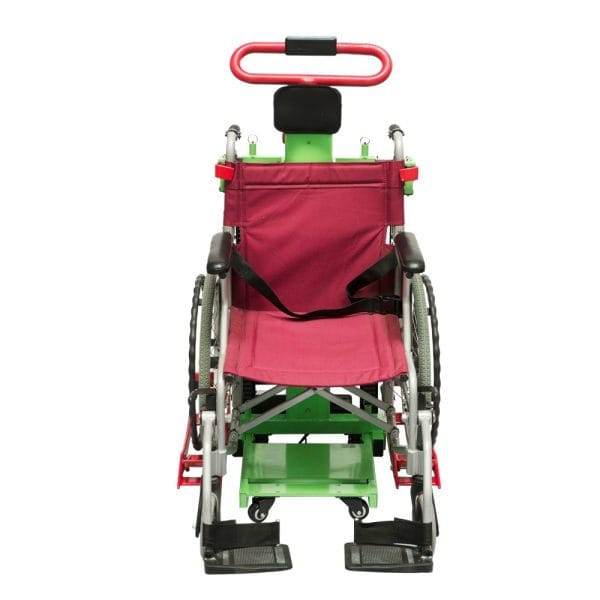

8. Adjustable wheelchair back lock to lock back of wheelchair whilst lift is being used.







How the Stair Climber works:

Checking the battery charge:

1. Check if the Stair Climber black switch button is switched on

• O means off
• I mean on

2.  Press the red button and the green lights will turn on if there is any charge in the battery

• 1 Light: 25% Charge
• 2 Lights: 50% Charge
• 3 Lights: 75% Charge
• 4 Lights: 100% Charge

Charging the battery:

1. Clockwise the battery connection cable.
2. Plug the charging cable and charge the battery.
3. When the battery is charged remove the charge cable and screw tightly clockwise.

Operating the stair chair lift- deploying and folding the stair climber:

1. Firmly press the grey tab above the red tab to release the track.

Folding stair chair lift:

1. Remove the adjusted wheels loading part
2. Lay down the stair chair climber. Under the bottom, there are two screws
3. Rotate the two screws counterclockwise
4. Lightly press the loading pallet then the stair lift climber will be folded

Extending the operating handle:

1. Press the red bracket as shows in the video
2. Continue holding down the red bracket with one hand and lift up or down with your other hand.
3. When you are happy with the position, release.
4. The same can be done with the headrest.

Controlling the Stair Climber:

1. Press the switch and the red light will illuminate on the top of the loading pallet
2. Turn on the red button when the red light is red, and the motor can work.

• To move the Stair Lift Climber backward, press the up button
• To move the Stair Lift Climber forward, press the down button

CAUTIONS:

• Never leave a wheelchair user unattended in the mobility stair climber and always secure the person into the wheelchair and secure the wheelchair to the stair climber prior to use.

• Avoid changing the position rapidly, as it may result in an injury to the wheelchair user or carer. Support the mobility stair climber while adjusting the handles.

• Improper maintenance can cause injury. Maintain the mobility stair climber only for the purpose described in the product description in the user manual.

• Please make sure that you understand all safety aspects and features of this product prior to use to make sure a safe use and avoid any injury.

An online user manual is available in our help section

• Please try the product multiple times without having the wheelchair user in the product so are fully confident using the product.

Contact us the Registered Disability Aid Disability Equipment providers through email or phone for any other inquiries or a free quote today!

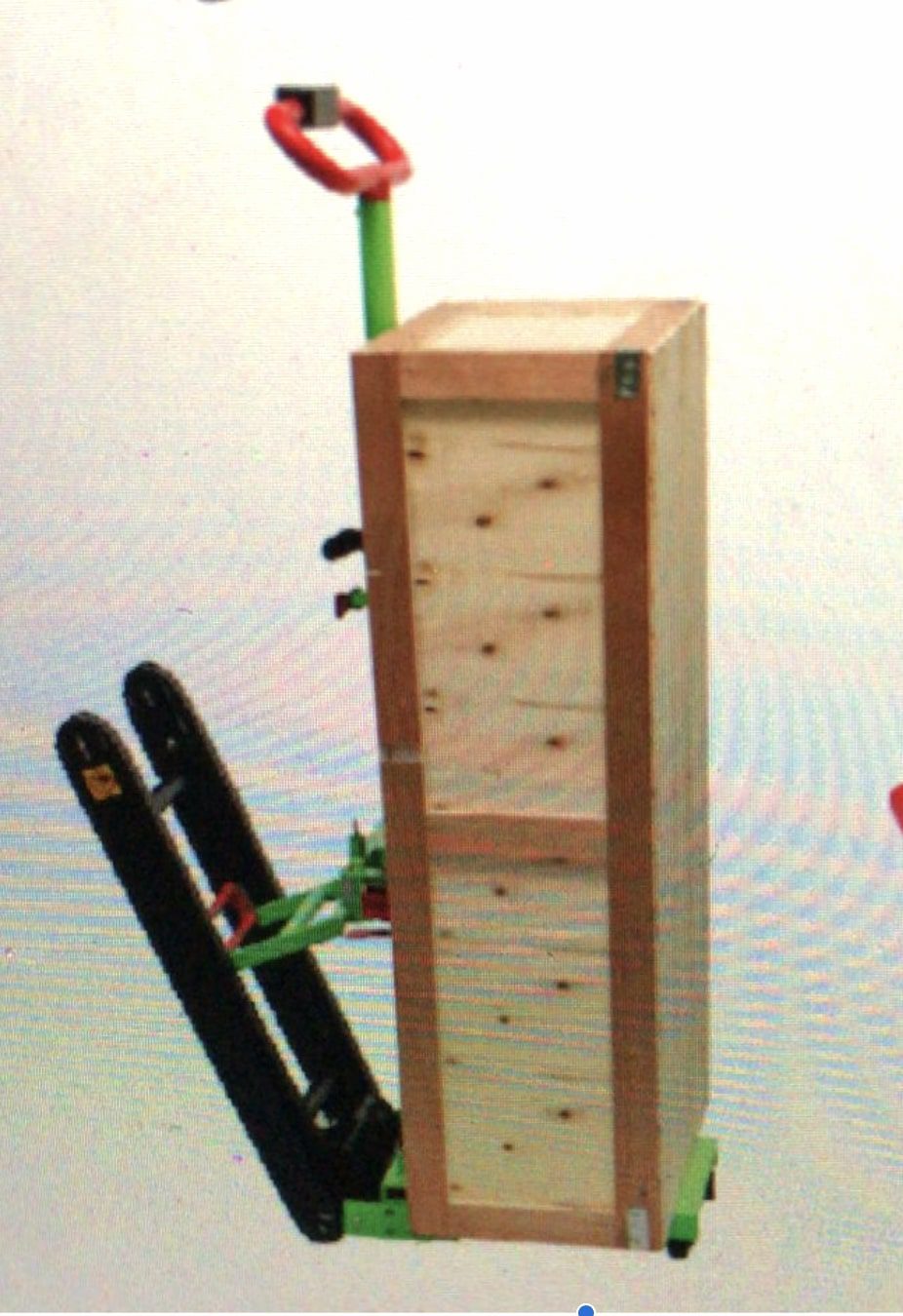

Do you wish to use this Mobility stair climber for delivery?

Yes, you can use this stair climber to lift heavy items up and down stairs using this universal delivery lifter.

Frequently Asked Questions:

1- What is a Stair climber?

A stair lift climber is a wheelchair lift that can easily transport a wheelchair and user up or down the stairs without too much hassle. They are also portable so you can bring them with you to places where needed.

2- Where can I use a wheelchair lift?

You can use a wheelchair lift anywhere where there is a staircase. This can be at your house, at the hospital, in high-rise buildings, in nursing homes, and many more.

3- How do you get a wheelchair upstairs?

You can easily take your wheelchair and wheelchair user up and down stairs with the new Stair wheelchair lift! All you do is lock your manual wheelchair onto the lift and send it up or down!
